Outdoor Seating Spacing and Clearance Guidelines

A well-designed outdoor space needs more than the right furniture. It also needs enough room for people to move comfortably, access seating, and enjoy the space without feeling crowded.

Whether planning a park, plaza, courtyard, or outdoor dining area, understanding spacing and clearance requirements is an important part of selecting and arranging site furnishings.

From benches and tables to lounge seating and movable chairs, here are some practical guidelines to consider when planning your outdoor seating layout.

How Much Space Should You Leave Around an Outdoor Bench?

The space surrounding a bench can be just as important as the bench itself. Adequate clearance allows pedestrians to pass comfortably while giving people room to sit down, stand up, and access the seating area.

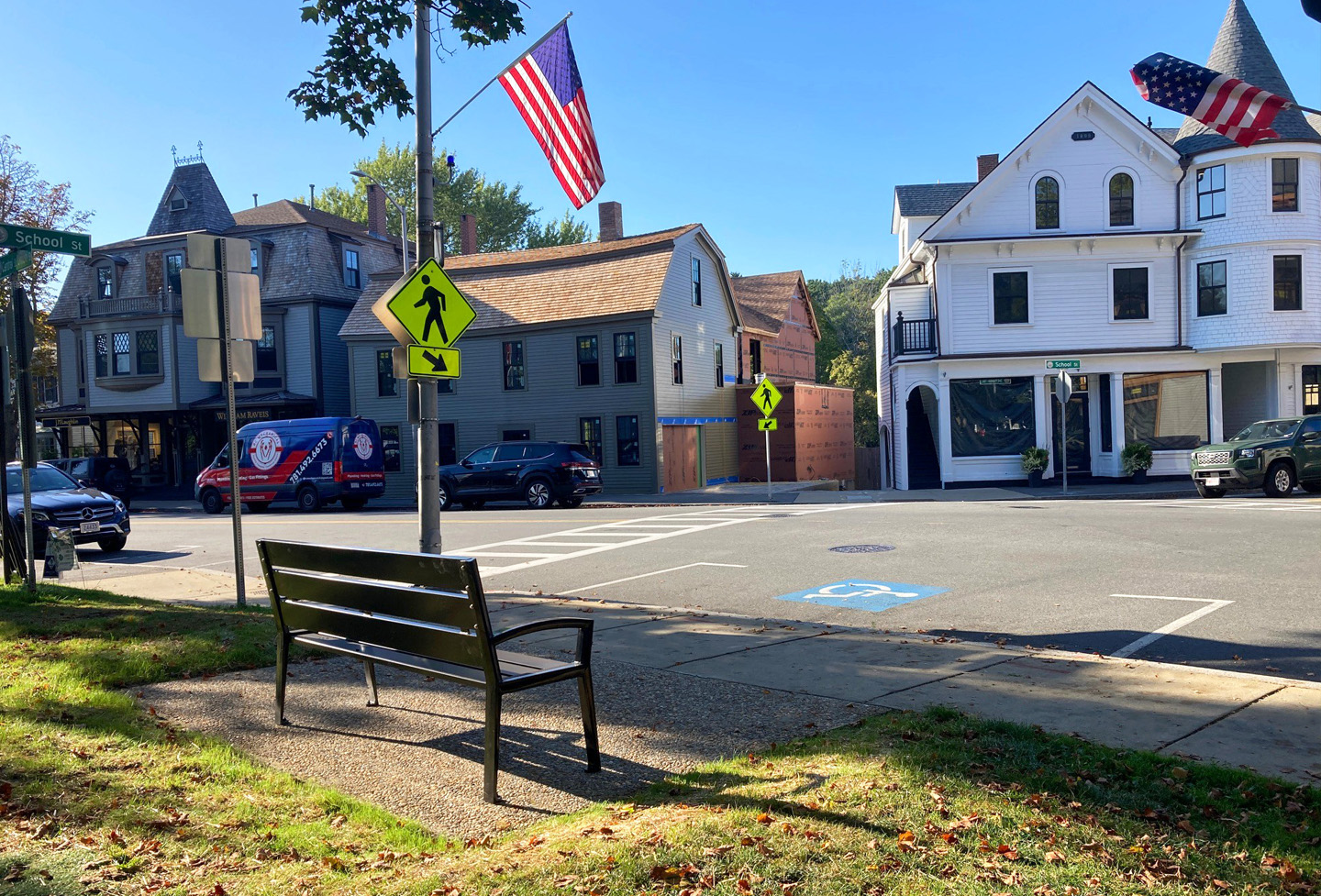

When placing benches along sidewalks, walkways, or other pedestrian routes, consider:

• Pedestrian clearance: Accessible walking routes generally require a minimum clear width of 36 inches under the ADA Standards, although additional width may be necessary depending on the location, traffic, and applicable regulations.


• Space in front of the bench: Allow enough room for people to approach, sit, and stand without interfering with pedestrian circulation.

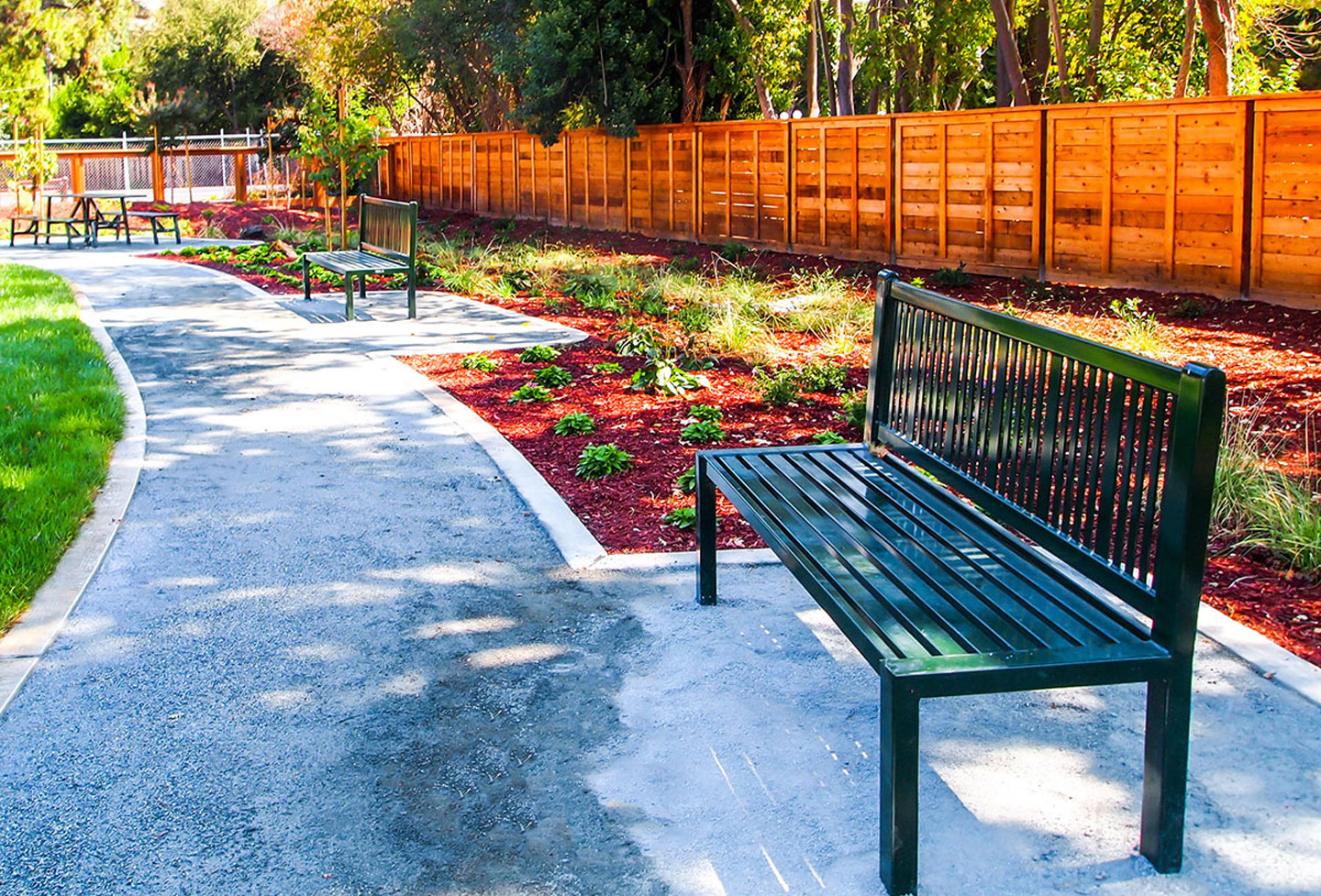

• Space at the ends: Consider providing an adjacent clear area for wheelchair users or others using mobility devices.  In addition to extra space, benches without end arms can help to better accommodate wheelchair transfers.


• Nearby obstacles: Plan around planters, receptacles, light poles, and other site elements that could restrict movement.

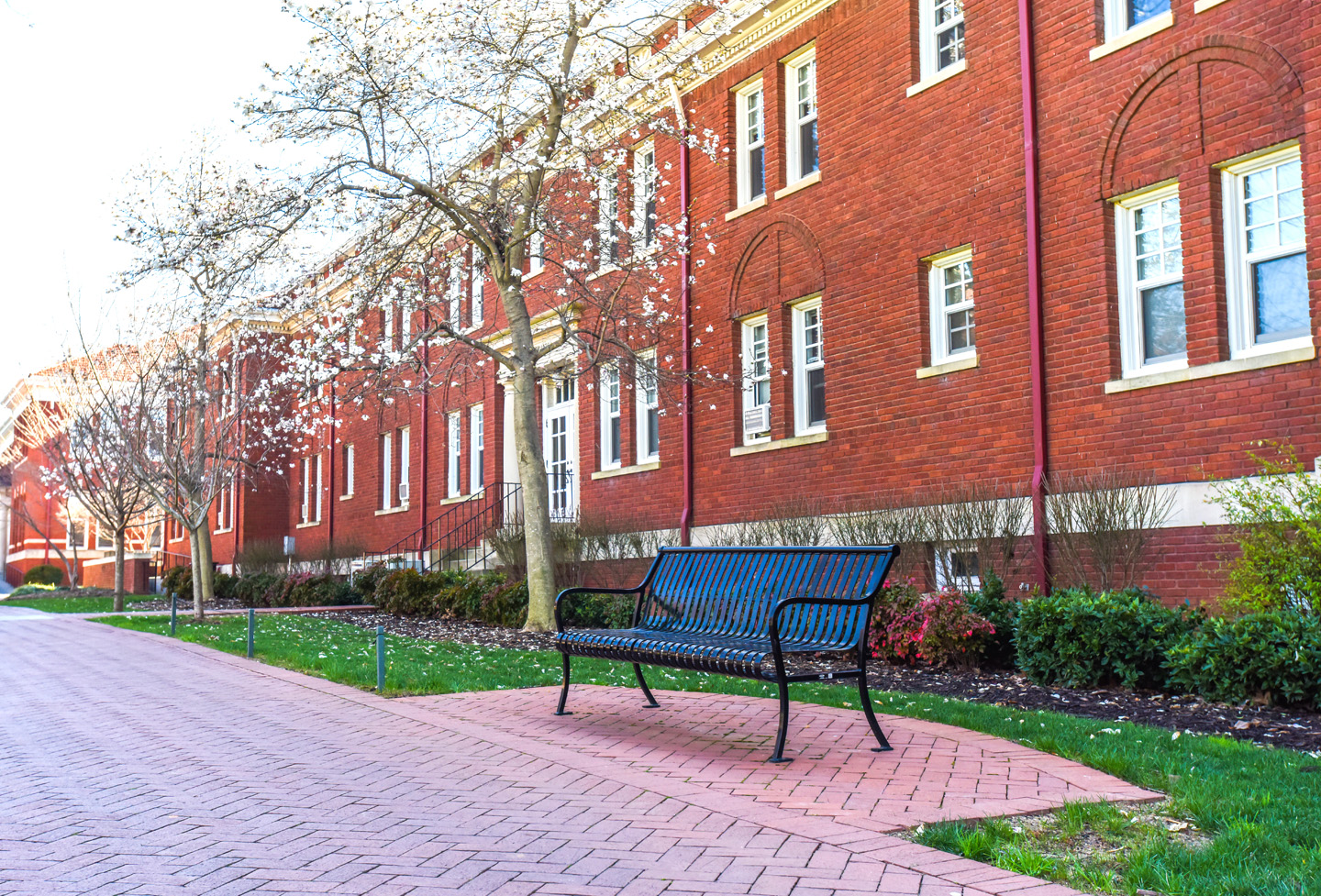

Whenever possible, position benches outside the primary pedestrian path. This allows people to enjoy the seating without creating obstacles for those passing through.

For more information on the typical space a bench occupies, see our Standard Bench Dimensions guide.

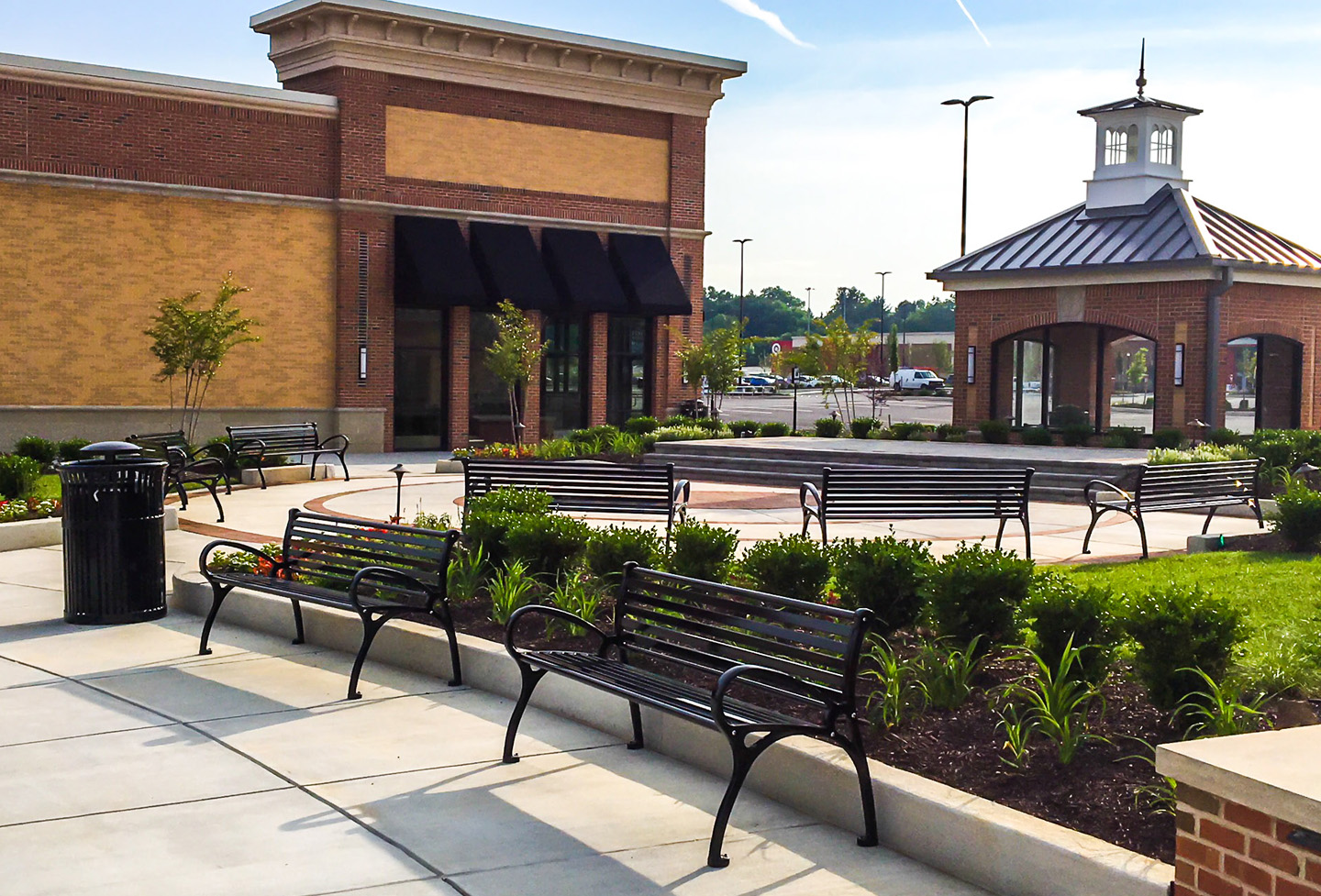

How Far Apart Should Outdoor Benches Be Placed?

There isn't one universal spacing requirement for outdoor benches. The ideal distance depends on how the space will be used and the experience the designer wants to create.

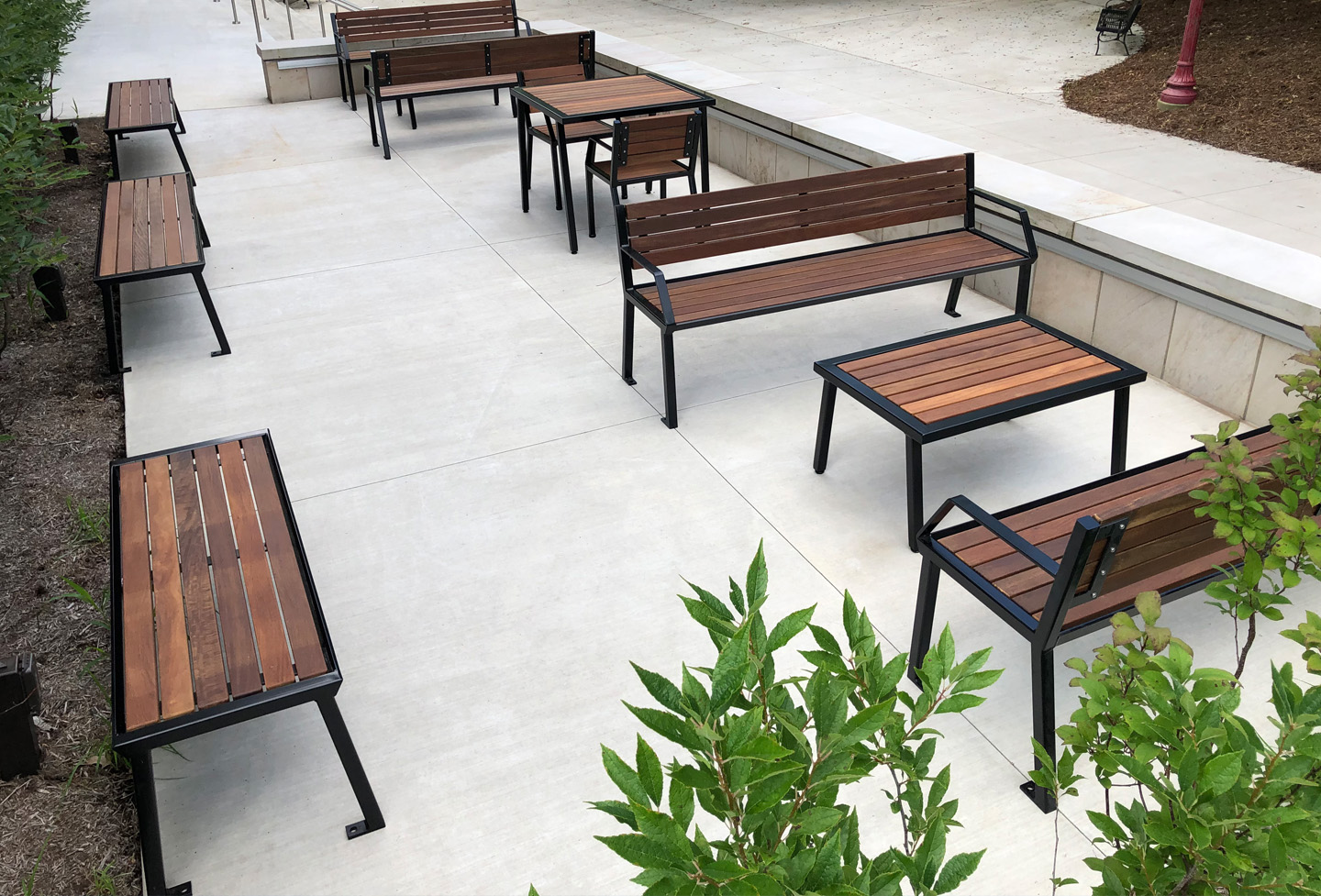

For example, benches arranged for conversation may be positioned closer together or at an angle to encourage interaction. Benches intended for quiet relaxation may benefit from greater separation.

Consider the following when determining bench spacing:

• Social seating: Position benches to encourage conversation while maintaining comfortable personal space.


• Individual seating: Allow greater separation where privacy or quiet reflection is preferred.


• High-traffic areas: Provide enough room for people to gather near seating without obstructing walkways.

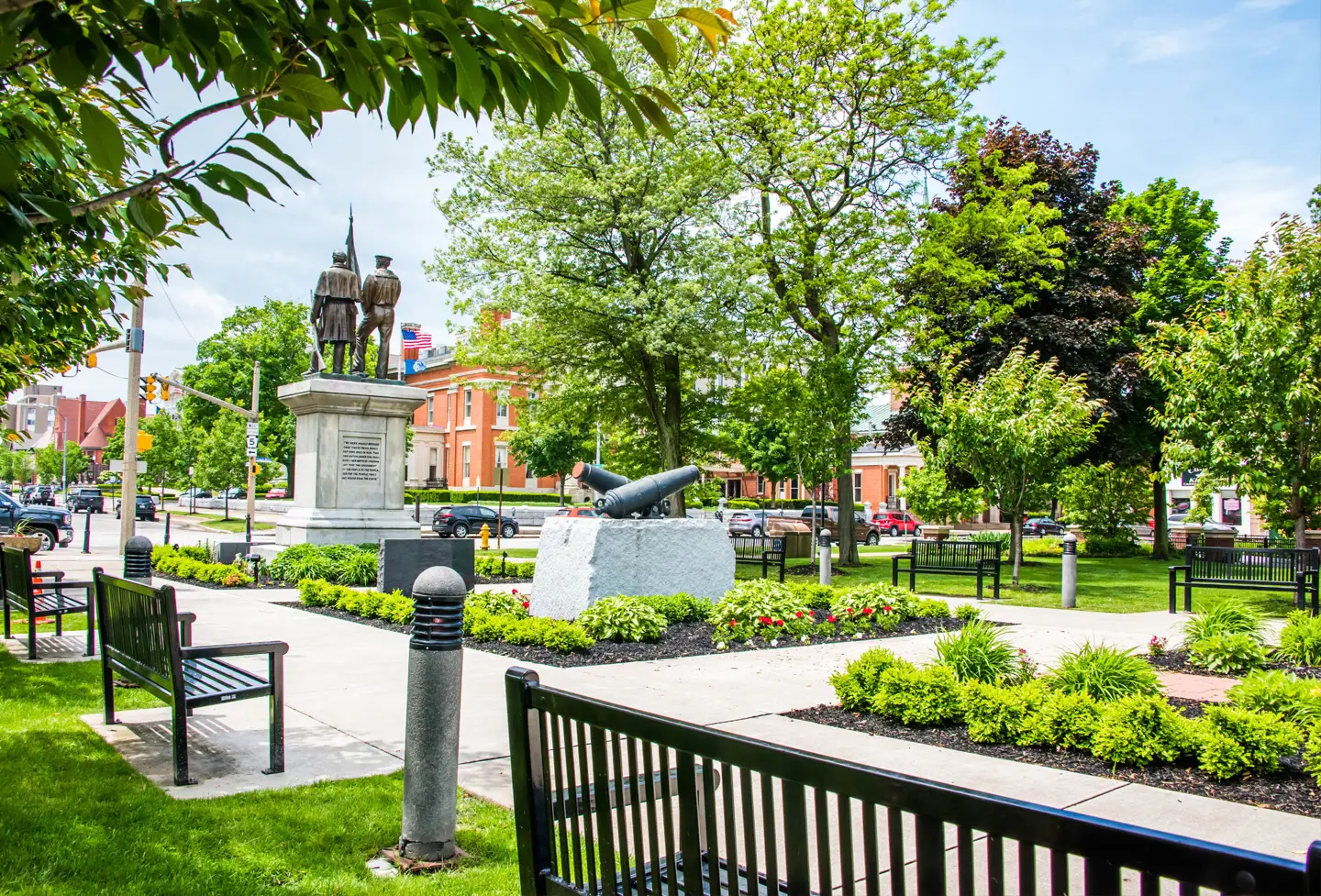

• Rest areas: Distribute benches along pedestrian routes to provide frequent and convenient opportunities to stop and rest.

The surrounding environment also matters. Trees, landscaping, views, and traffic can all influence the best placement.

A table that fits comfortably on a drawing may feel crowded once chairs are occupied or moved away from the table.

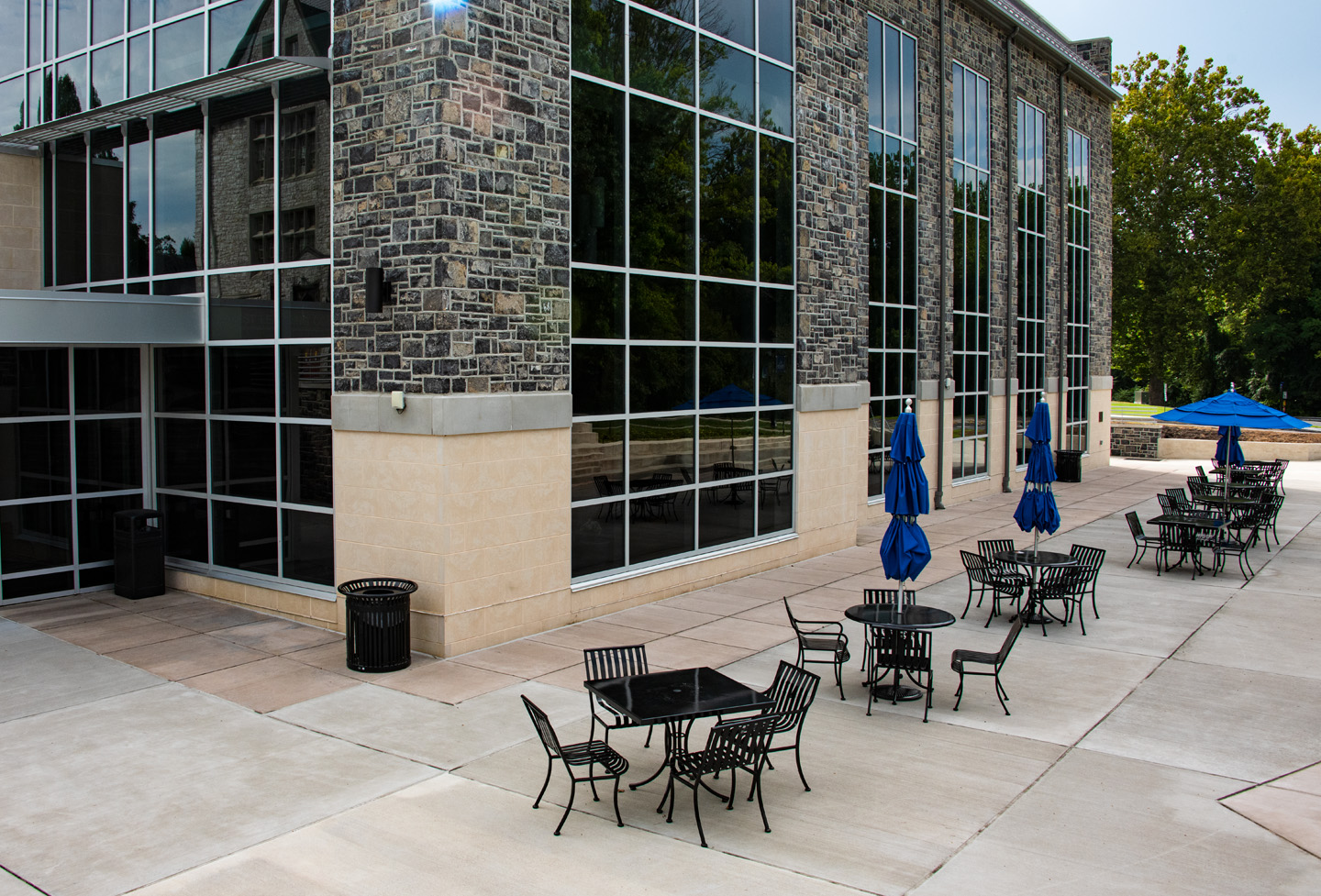

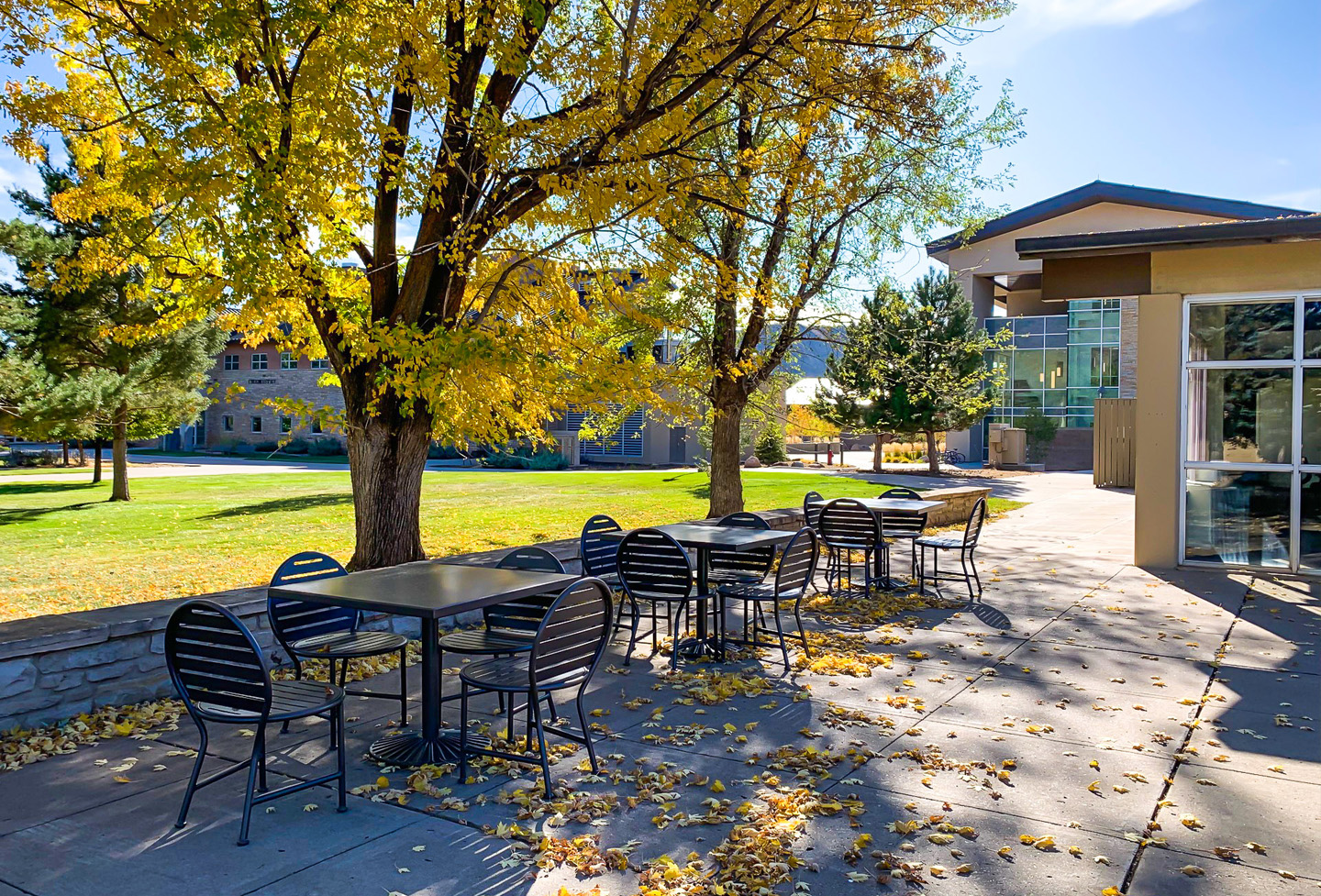

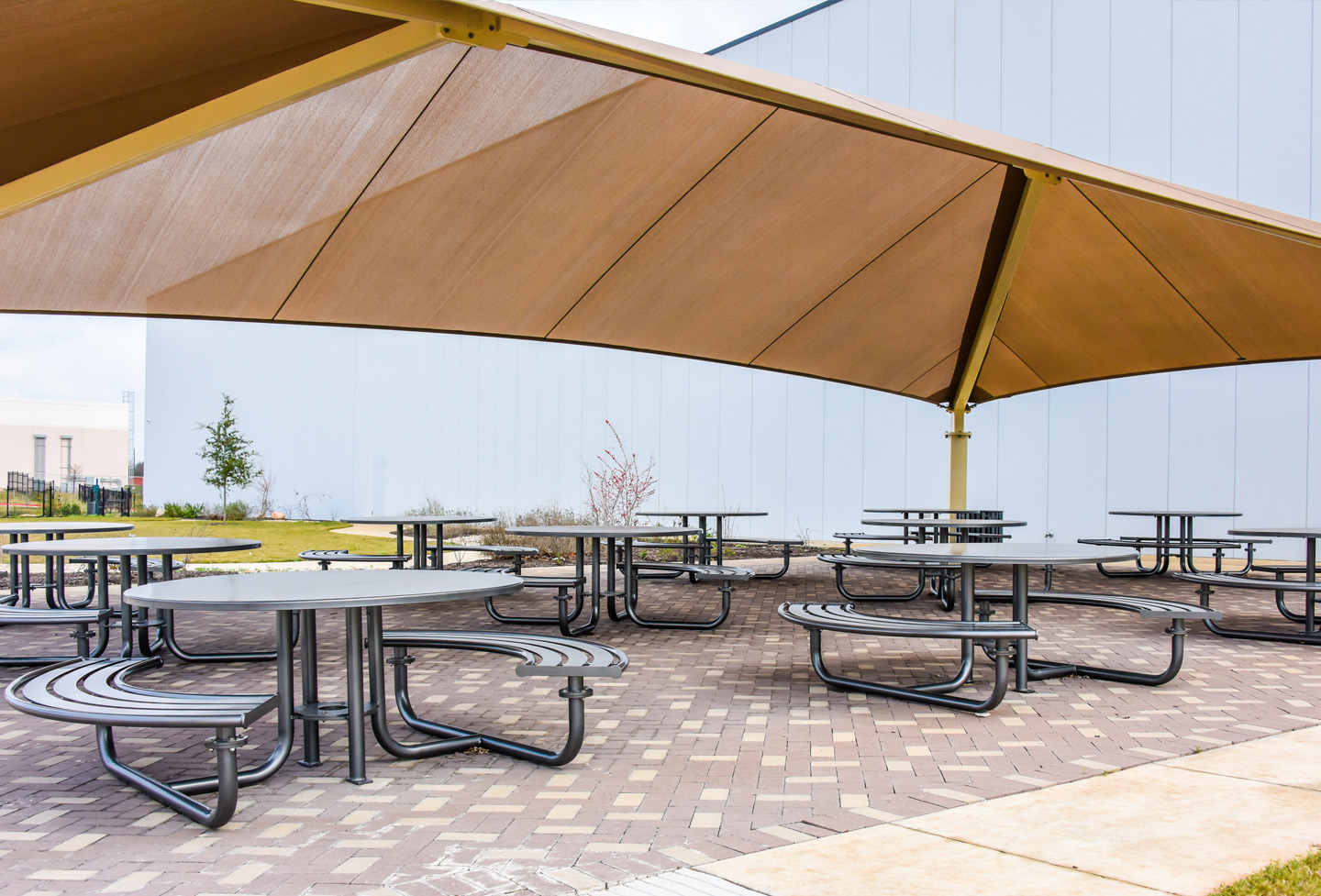

When planning outdoor dining or gathering areas, consider three important zones:

1. The table footprint

Start with the actual dimensions of the table, including any attached seating or benches.

2. The seating area

Allow room for people to pull out chairs, sit comfortably, and enter or exit their seats. Movable chairs generally require more flexibility than permanently attached seating.

3. The circulation area

Provide clear pathways around occupied seating areas, particularly where pedestrians or mobility devices need to pass.

For accessible routes, the ADA Standards generally establish a minimum clear width of 36 inches, with additional requirements for certain turns and passing areas. This clearance should be measured around obstructions, including chairs in their expected occupied positions.

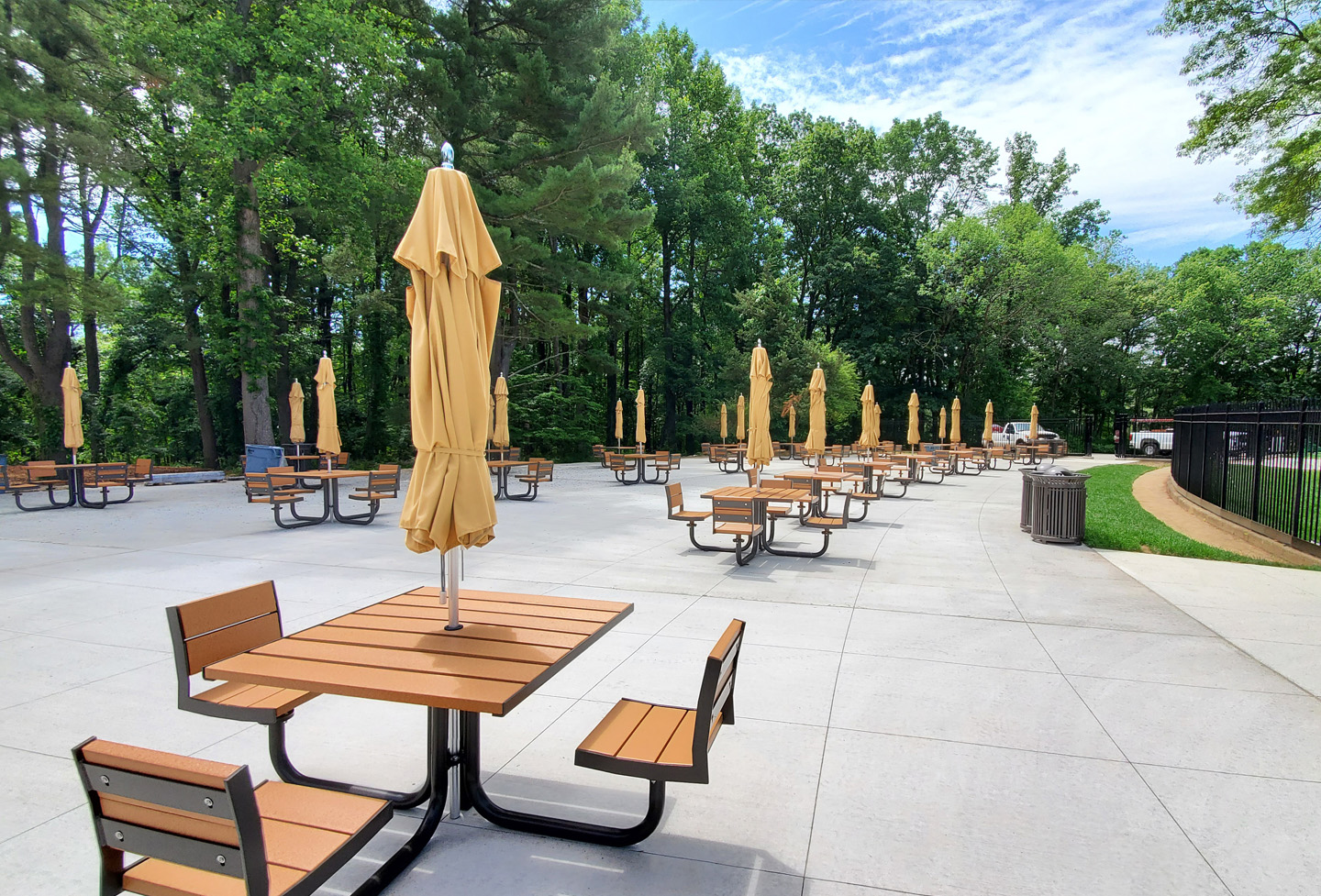

In busy dining areas, plazas, and shared courtyards, additional circulation space can improve comfort and reduce congestion.

What Are the ADA Clearance Requirements for Outdoor Seating?

Accessibility should be considered from the beginning of the layout process, not after the furniture has been selected.

The Americans with Disabilities Act (ADA) establishes accessibility requirements for many public and commercial environments. Specific requirements depend on the type of facility, seating, and applicable standards.

Some important dimensions include:

Accessible dining tables must provide knee and toe clearance at least 30 inches wide and 17 inches deep, with a minimum knee clearance height of 27 inches and toe clearance height of 9 inches. A clear floor space measuring at least 30 × 48 inches must also be provided for a forward wheelchair approach.

For benches, accessibility requirements vary by setting. Certain facilities and outdoor environments have specific provisions for bench design and adjacent clear spaces.

Designers should consult the applicable accessibility standards, local codes, and project requirements when determining final dimensions and layouts.

For additional guidance, visit the U.S. Access Board.

How Much Space Should You Allow for Lounge Seating?

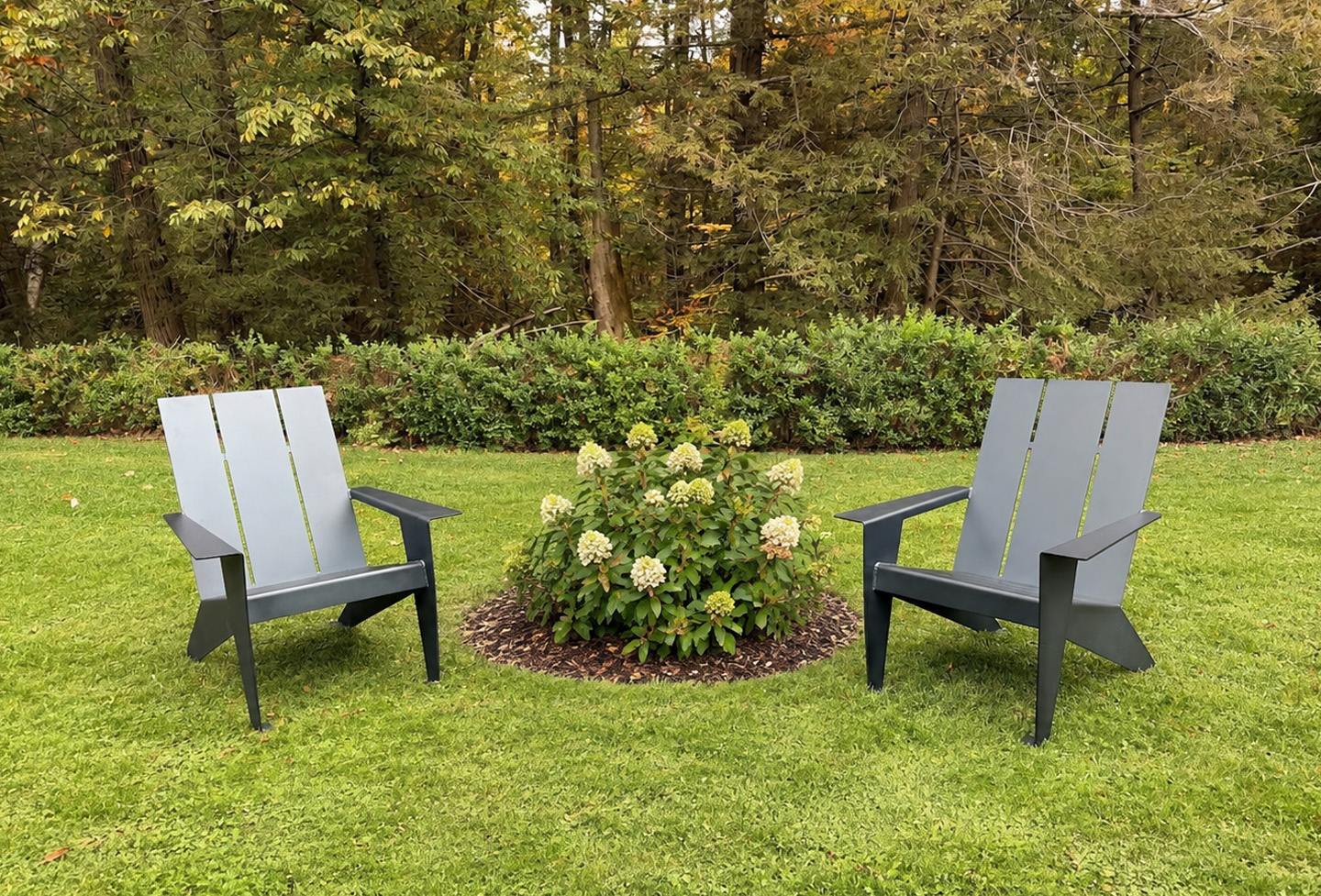

Lounge chairs, Adirondack chairs, and other relaxed seating styles introduce additional considerations. Unlike traditional upright benches, lounge seating often has a deeper footprint and encourages people to stretch out or settle in for longer periods.

When planning these areas:

• Account for the full depth of each chair, including reclined backs and extended seating surfaces.

• Leave room for people to enter and exit seating without disturbing others.  Also allow for stretched-out legs while seated.

• Consider the placement of side tables, planters, and other nearby furnishings.

• Maintain clear pedestrian routes around seating groups.

• Allow additional flexibility when using movable chairs that may be rearranged throughout the day.

Designing Outdoor Spaces That Work

Effective outdoor seating layouts balance comfort, accessibility, circulation, and the intended use of the space.

While dimensions and clearance guidelines provide an important starting point, every project has its own considerations. The size of the space, expected traffic, furniture style, and surrounding landscape all influence the final arrangement.
