What Is E-Coating for Site Furnishings? (And When Do You Actually Need It?)
When specifying site furnishings for public spaces, durability is always top of mind. Powder coating is the preferred finish for steel products, and it is trusted for its superior corrosion resistance. However, in certain environments, an additional layer of protection may be an option to explore.
That’s where e-coating comes in. If you’ve come across the term while reviewing product specifications, you’re not alone. E-coating is often mentioned alongside powder coating, but it serves a very specific purpose.
Here’s what it is, how it works, and when it’s worth considering.
What Is E-Coating?

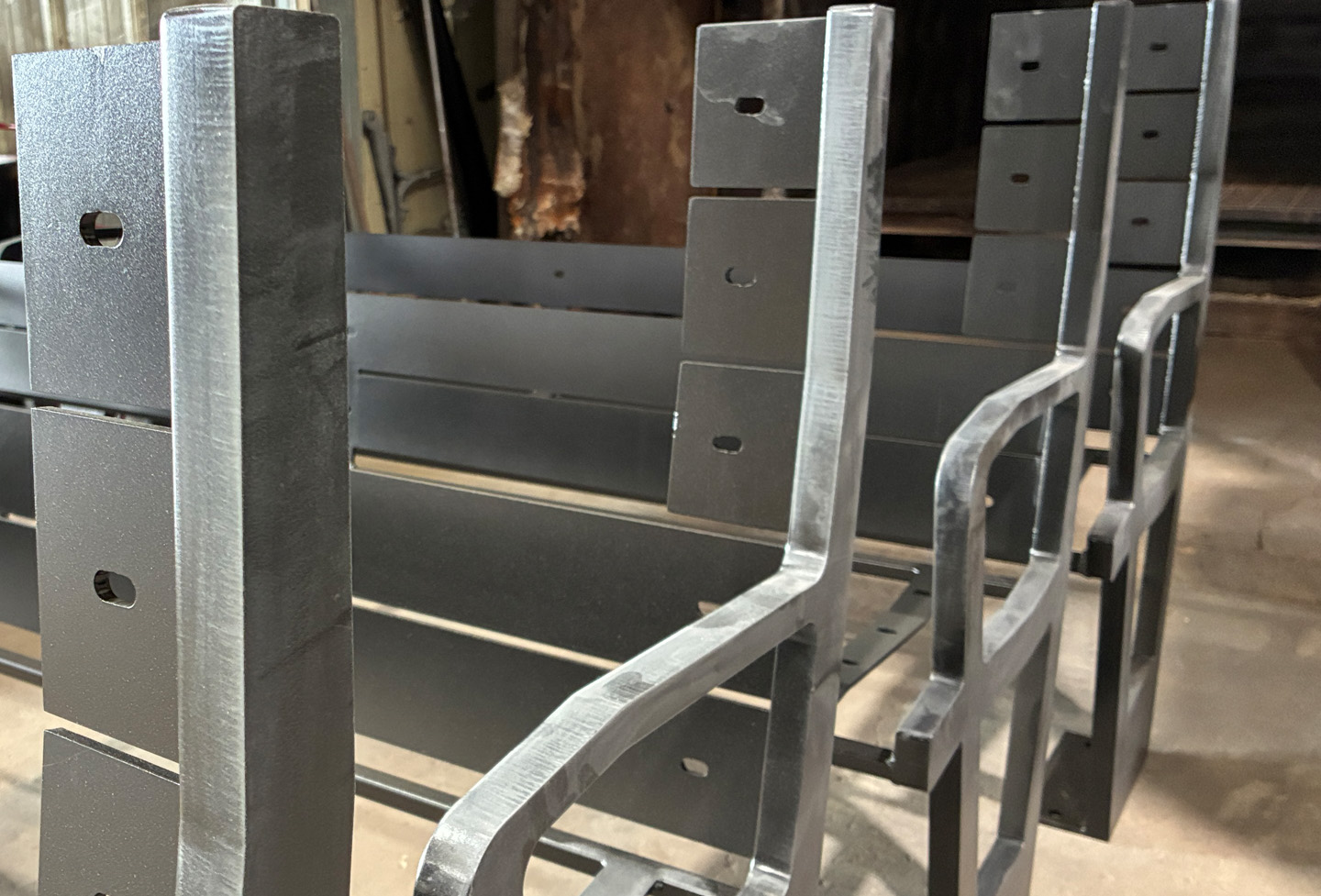

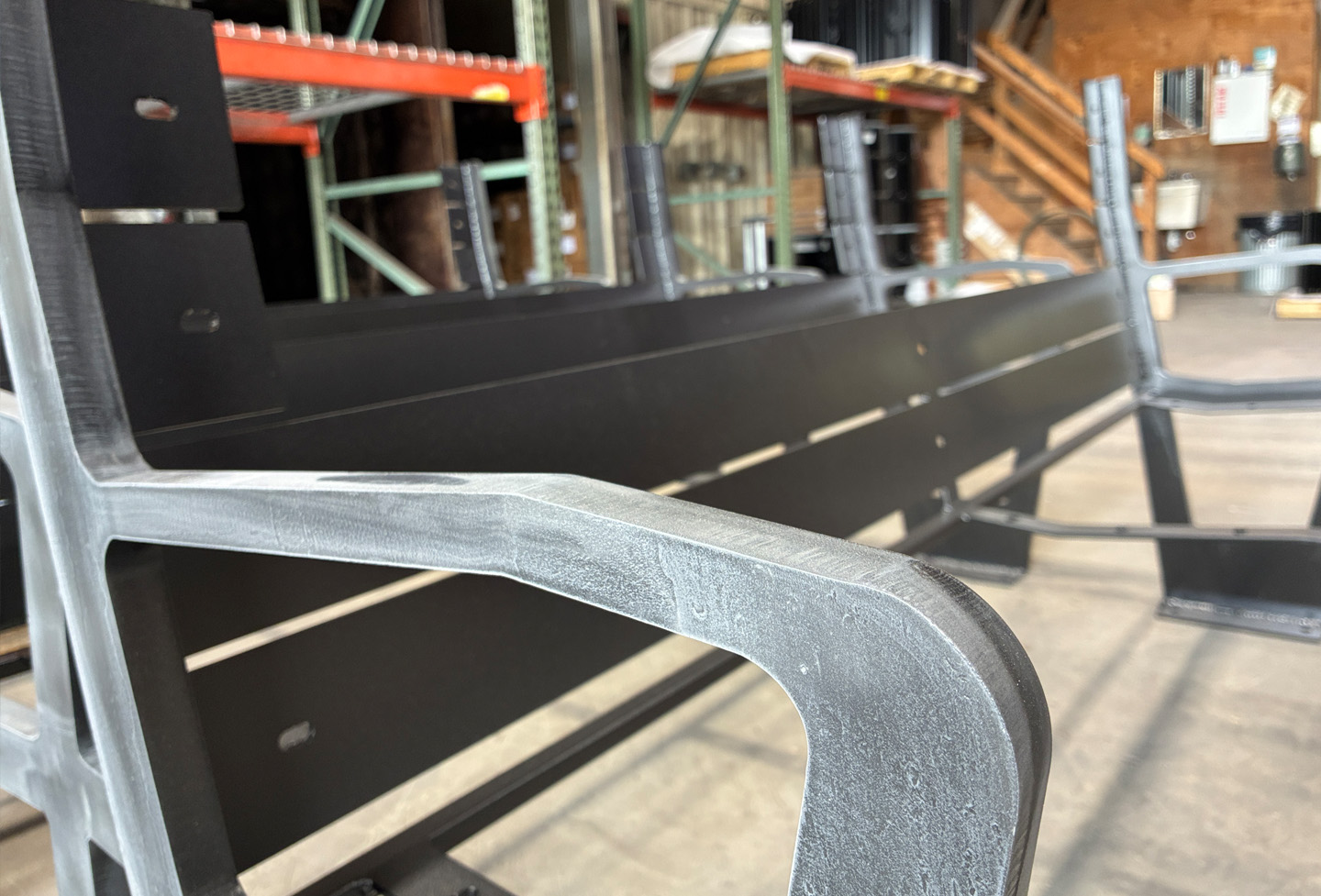

E-coating (short for electrophoretic coating) is a process where metal components are submerged in a liquid coating bath and an electrical charge is applied.
This causes the coating to bond evenly to the surface of the metal—covering not just the exterior, but also hard-to-reach areas like interior tubing, seams, and tight corners.
The result is a thin, uniform layer that acts as a corrosion-resistant primer.
Is E-Coating the Same as Powder Coating?
No—these are two different types of coatings that serve different roles.
• E-coating is typically used as a base layer for corrosion protection
• Powder coating is the outer finish that provides durability, color, and weather resistance
In most applications, e-coating is not used on its own. Instead, it’s applied first, followed by a powder coat finish.
It is important to note that E-coating is sometimes compared to galvanizing, but they serve different purposes. Galvanizing provides a thick zinc layer for heavy-duty corrosion protection, while e-coating is a thinner, more uniform base layer designed to work in combination with a powder coat finish. Galvanizing may be considered in extremely harsh environments, but it often comes with trade-offs in appearance and finish consistency.
How E-Coating Works with Powder Coating
When specified, e-coating becomes part of a two-step finishing system:
1. Metal components are cleaned and prepared
2. Parts are submerged in an e-coat bath and electrically coated
3. The e-coat layer is cured
4. A powder coat finish is applied over top
This creates a layered system:
• Inner layer: corrosion protection
• Outer layer: durable, weather-resistant finish
When Do You Actually Need E-Coating?
For many projects, a high-quality powder coat finish performs extremely well on its own. It is a trusted process that offers rust, abuse, and sun-fade resistance.
E-coating becomes most valuable when environmental conditions increase the risk of corrosion.

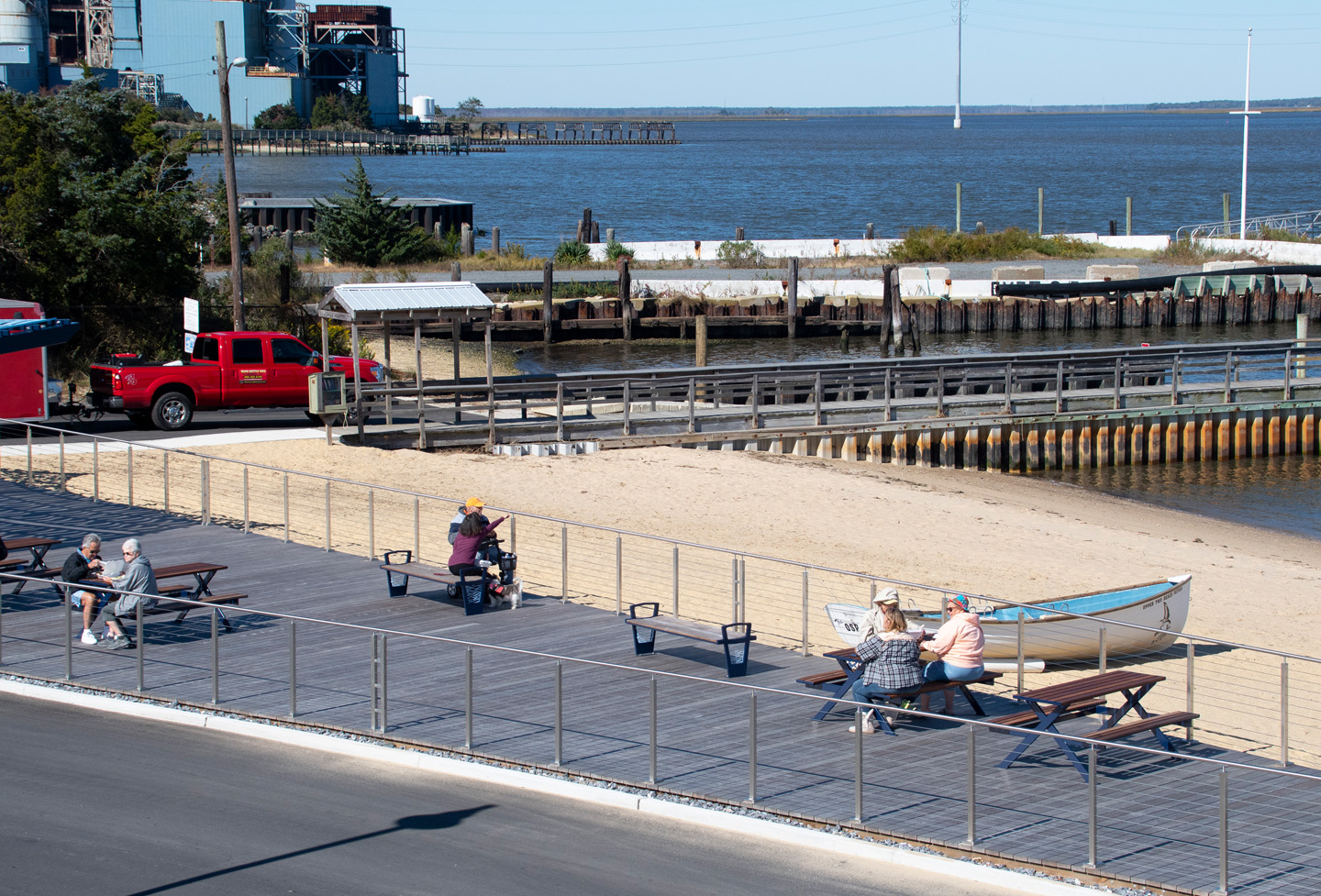

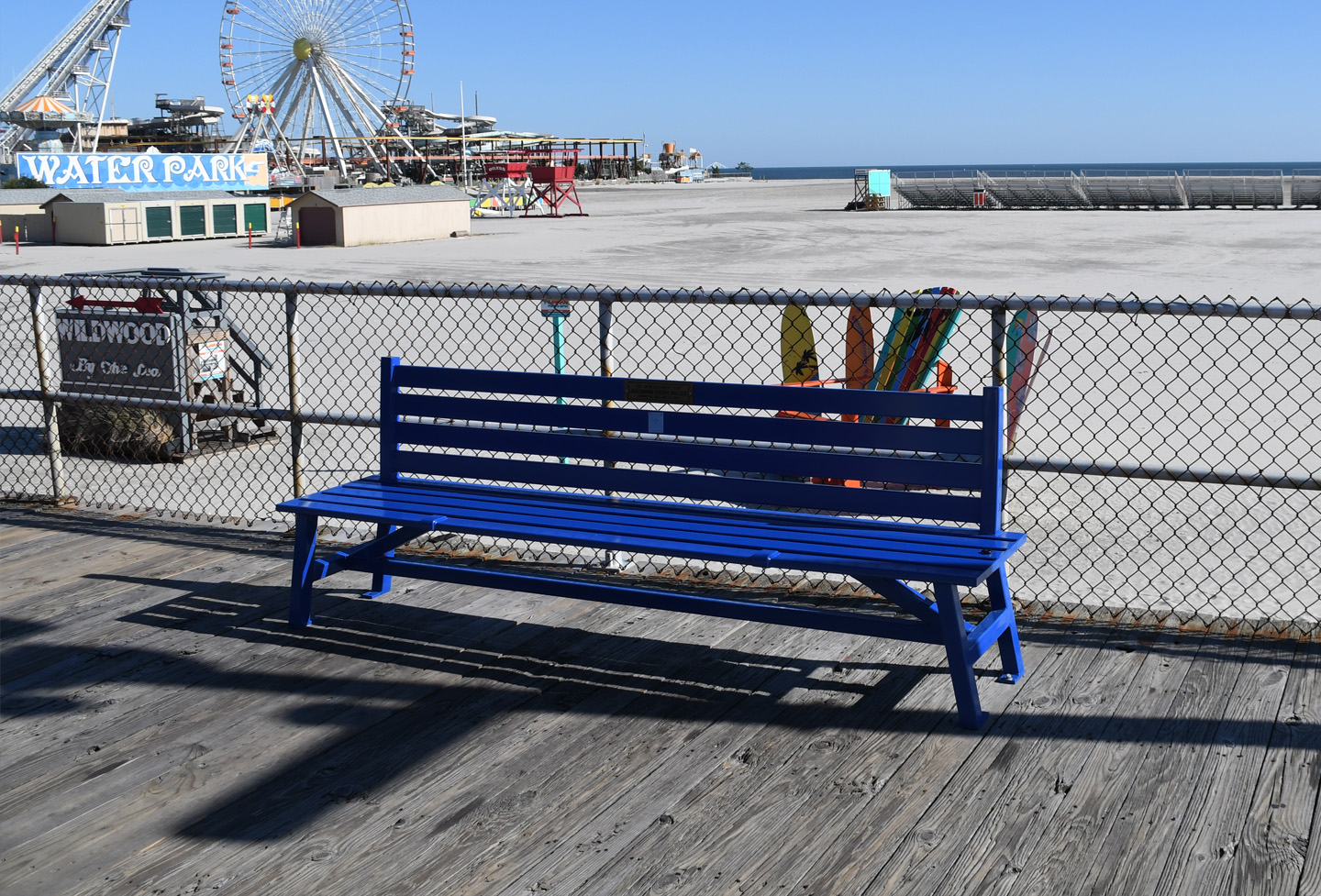

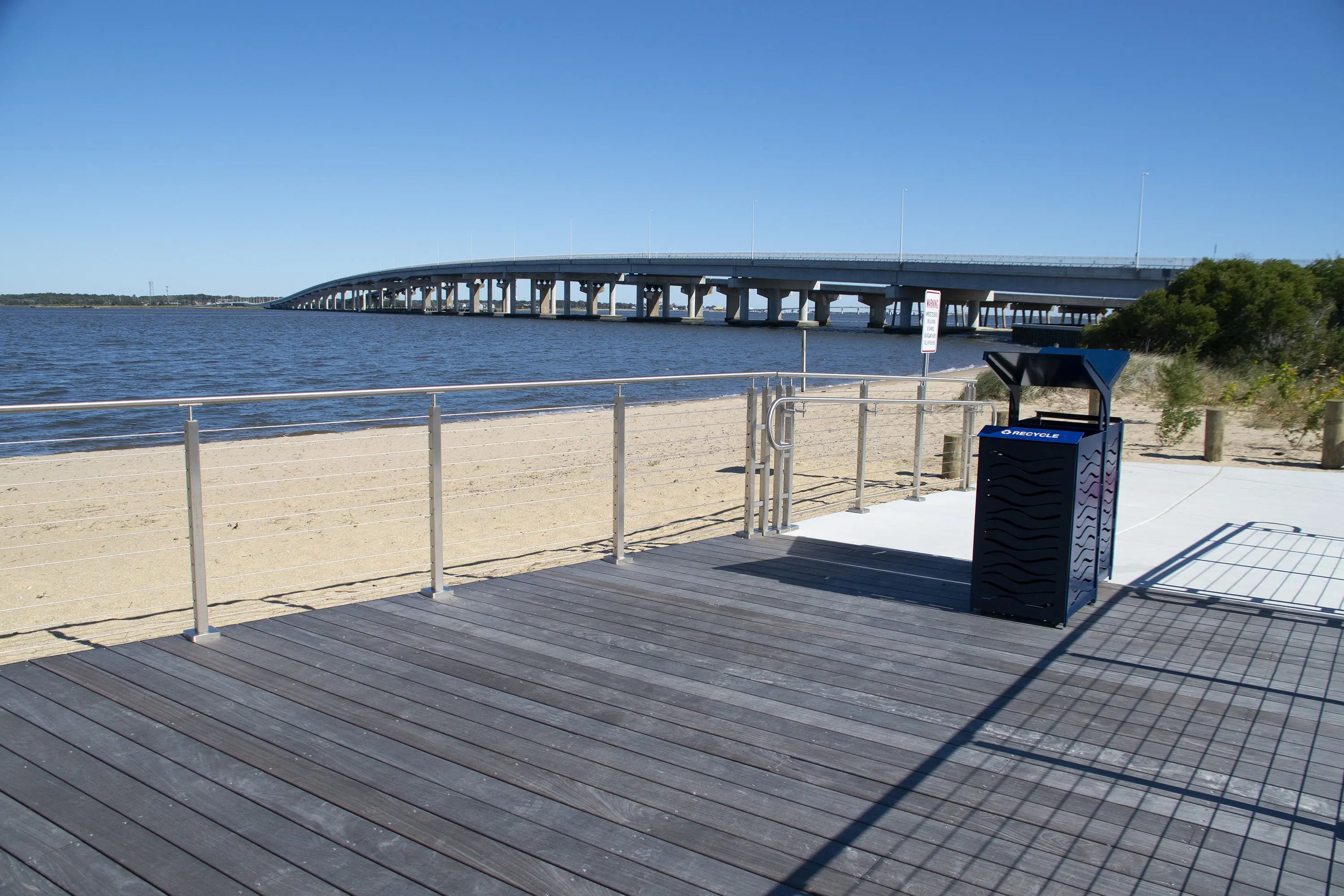

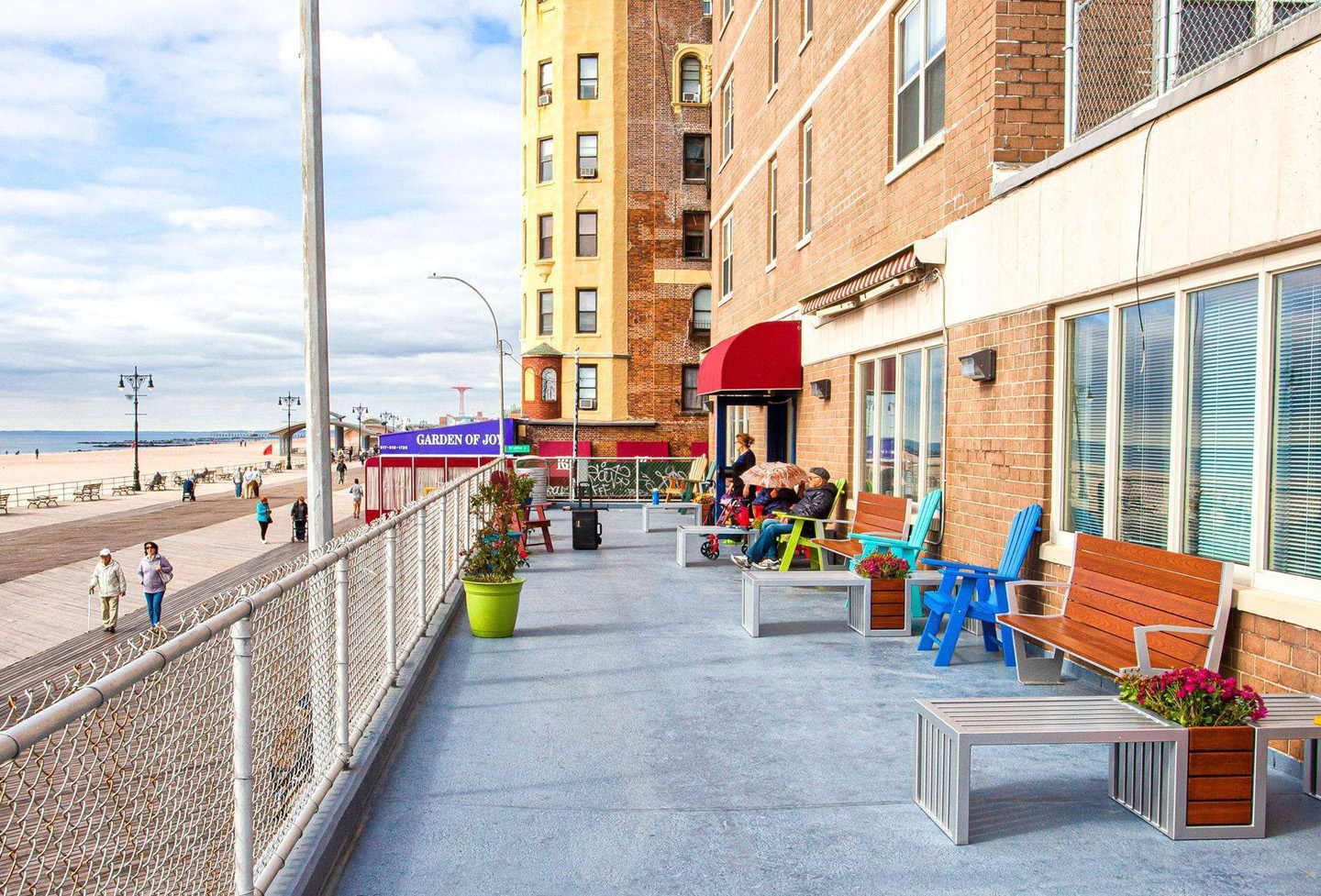

Coastal or High-Salt Environments
Salt exposure can accelerate corrosion. E-coating adds an extra barrier that helps protect steel over time.

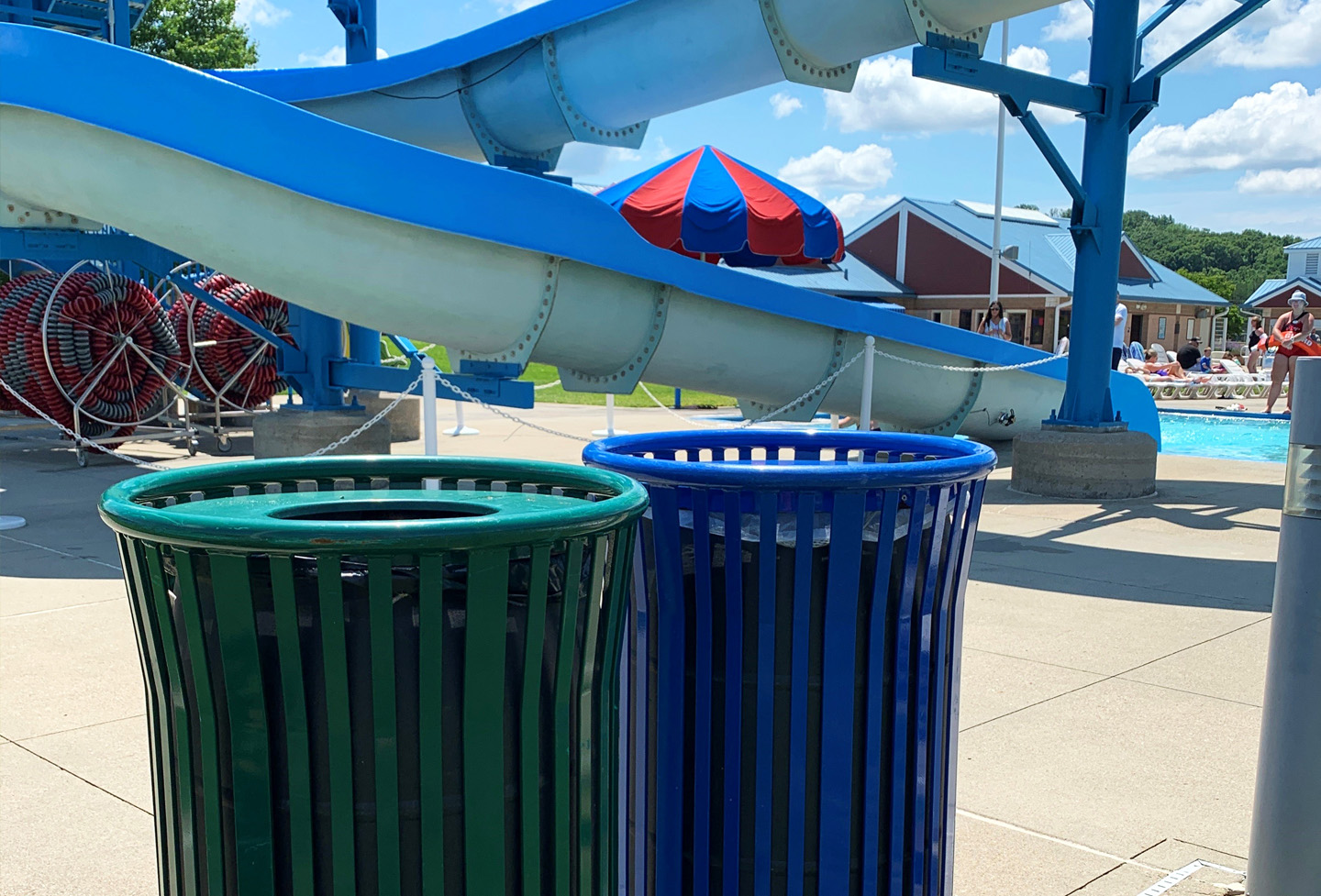

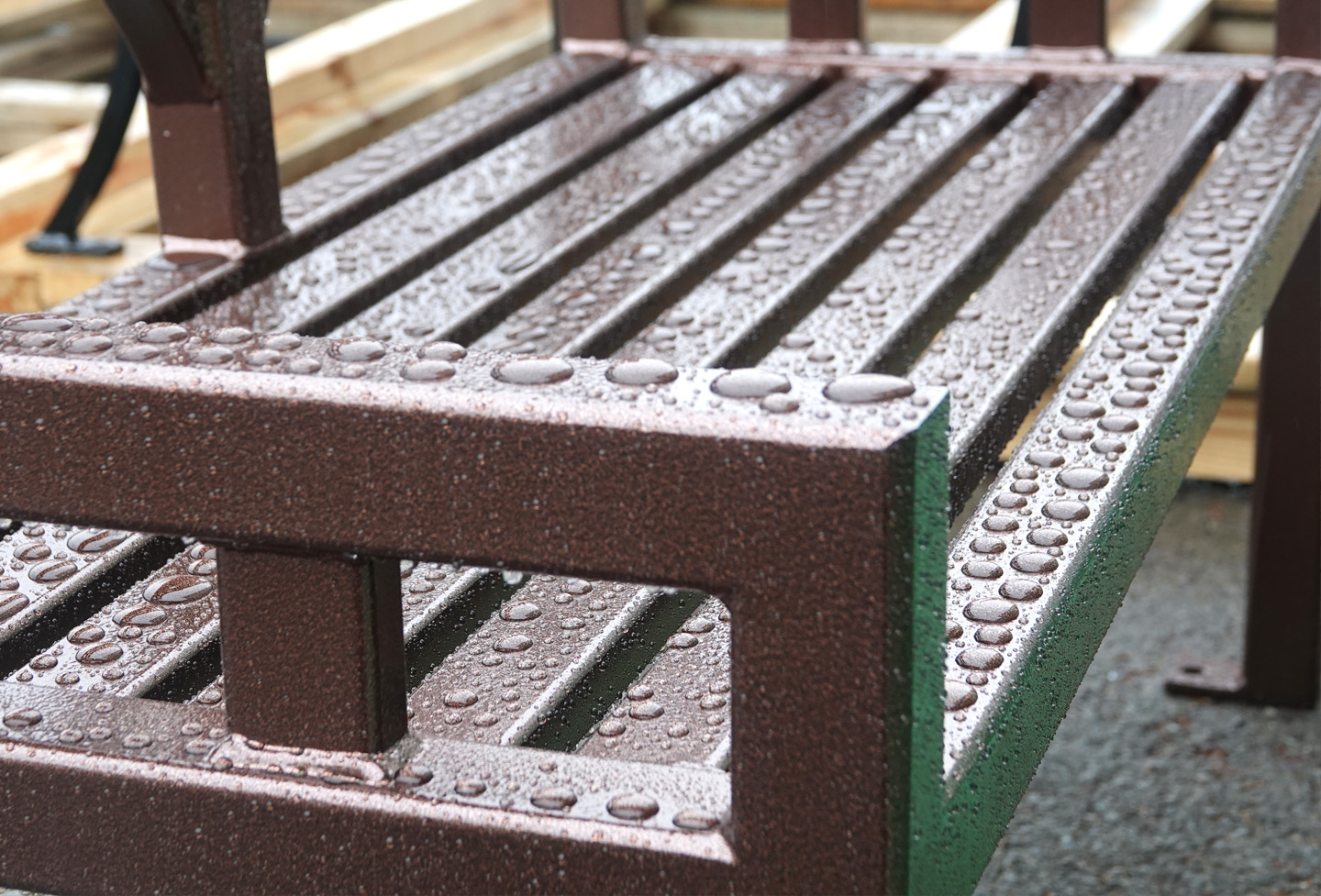

Areas with Frequent Moisture
Waterfronts, splash pads, irrigation-heavy landscapes, and rainy climates can lead to prolonged moisture exposure. E-coating helps further protect areas where water may collect.

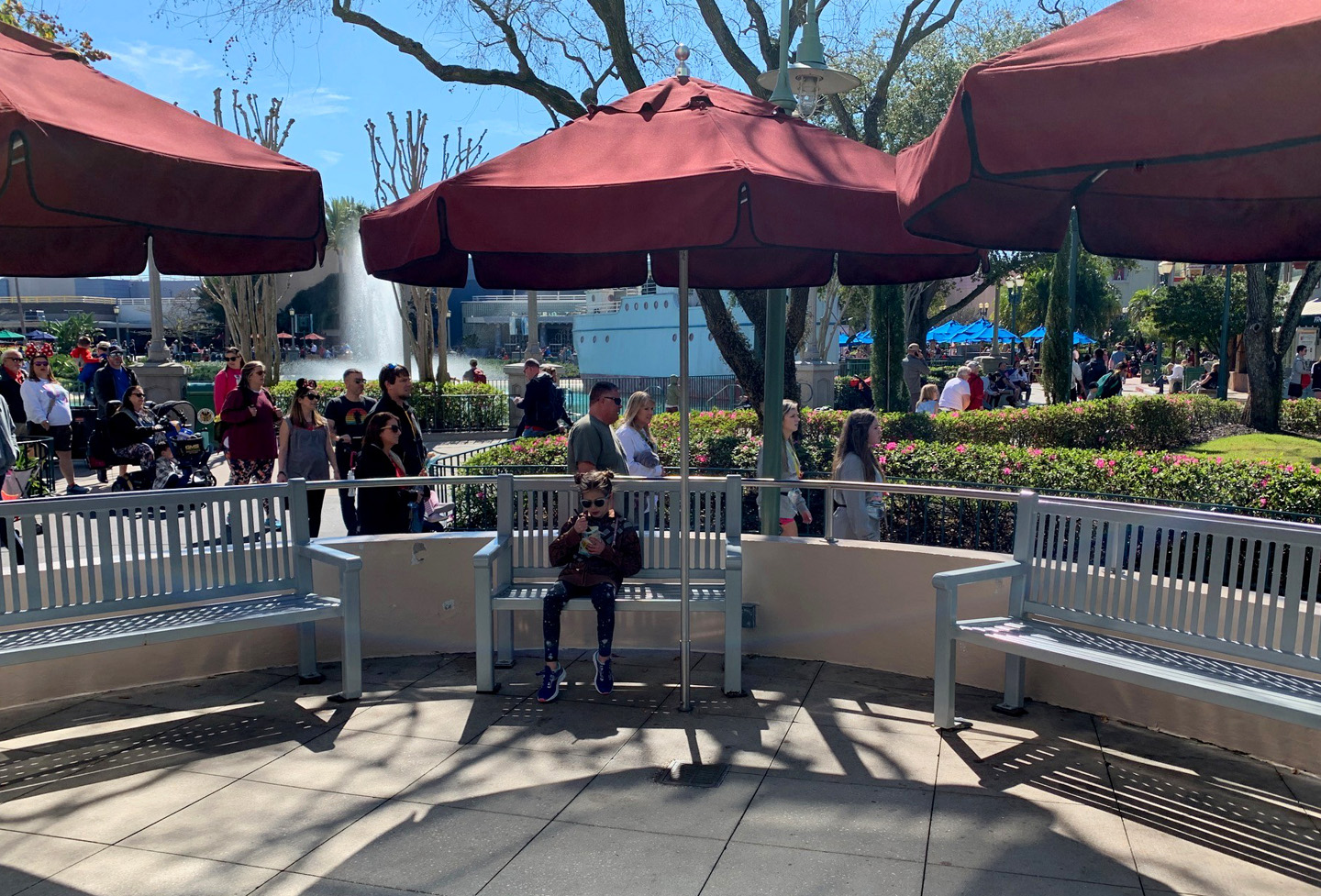

High-Traffic Public Spaces
If the outer finish is scratched or chipped over time, the e-coat layer underneath helps slow the spread of corrosion.
When E-Coating May Not Be Necessary
E-coating can be an expensive upgrade so it is important to know that it is not required for every application.
In most cases, a well-applied powder coat finish is more than sufficient—especially in:
• Inland environments
• Moderate climates
• Lower-moisture settings
In these situations, adding e-coating may not provide a meaningful added benefit for the cost.
Where Powder Coating Fits In
Powder coating remains the primary finish system for site furnishings. It provides:
• Long-term durability
• Resistance to weather and UV exposure
• Consistent color and appearance
At Keystone Ridge Designs, our Keyshield® powder coat system is built to perform—delivering a durable, consistent finish that holds up in real-world outdoor conditions.

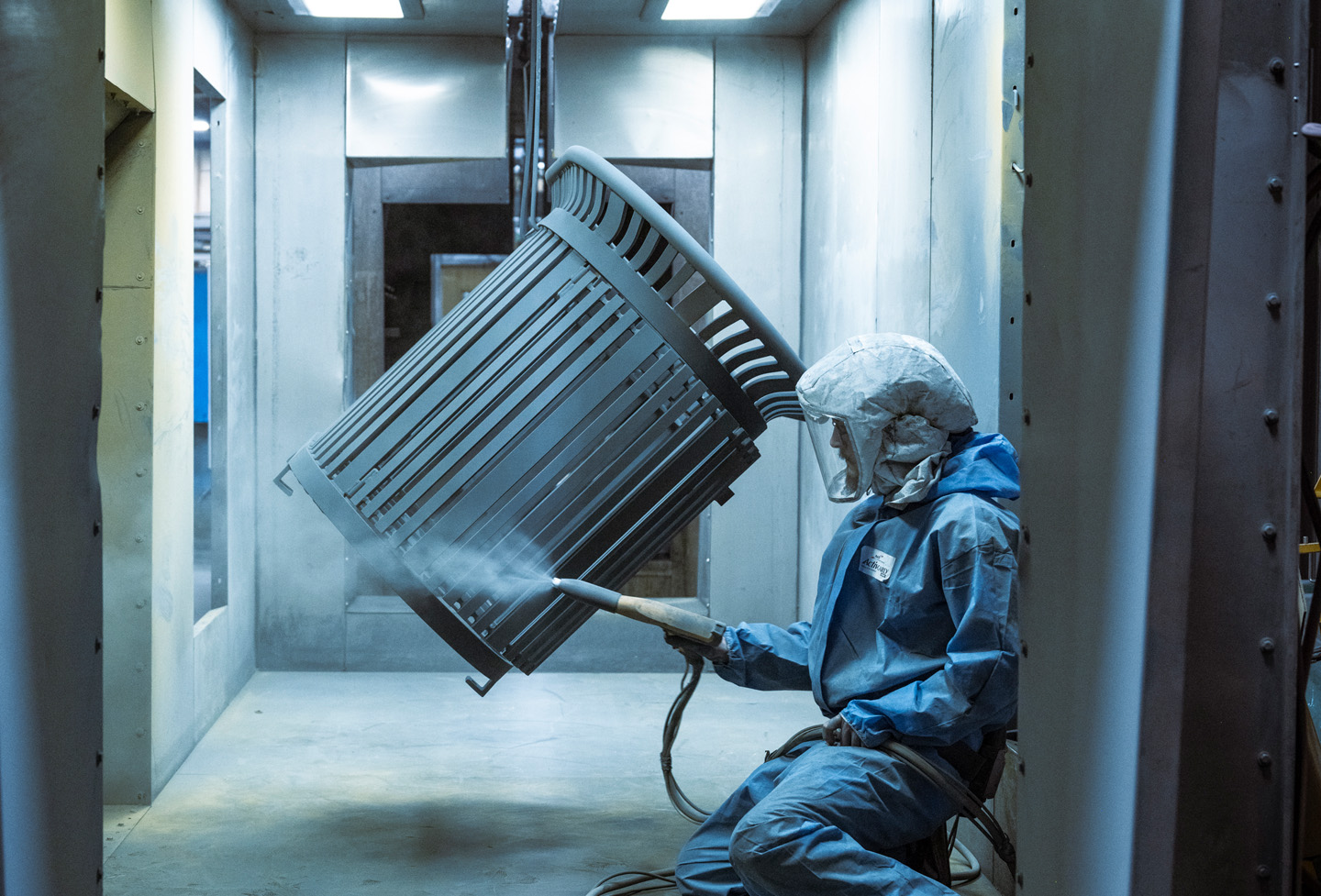

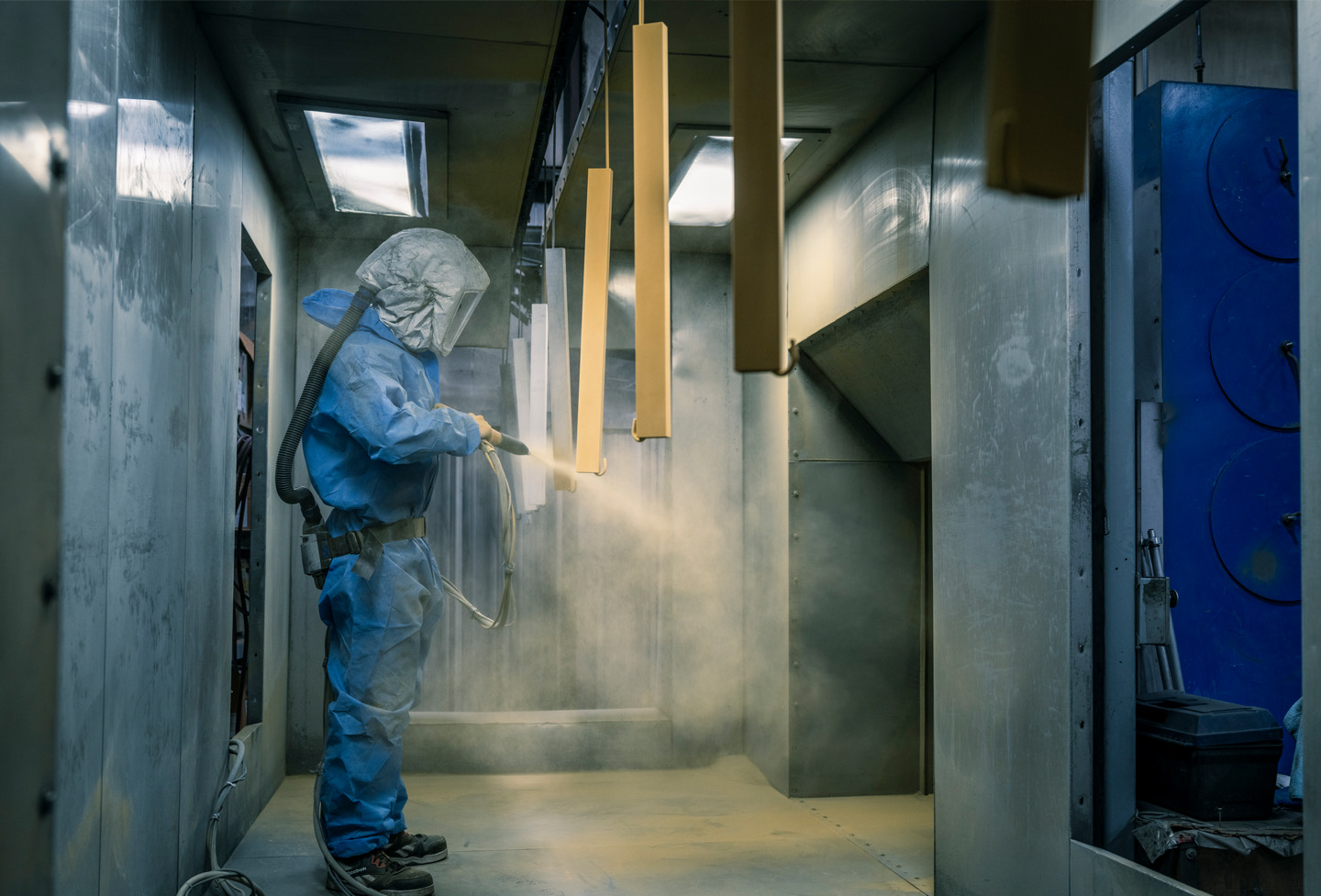

Each product is sandblasted to remove surface contaminants, then finished with a two-coat powder system—a zinc-rich epoxy primer and marine-grade polyester topcoat—electrostatically applied and oven-cured to a 7–15 mil thickness for a smooth, non-porous, highly resilient finish.
Keyshield® is the standard across our product line for a reason: it provides the long-term protection and appearance our customers expect without the need for additional coatings.
E-coating is available as an optional enhancement, reserved for projects where environmental conditions or customer specifications require an extra level of corrosion resistance.
Why This Matters for Site Furnishings
Benches, litter receptacles, tables, and bike racks are long-term investments. They’re exposed to the elements every day, often in demanding conditions.
Choosing the right finish system helps:
• Protect against corrosion
• Extend product lifespan
• Reduce maintenance over time
The key is not to over-specify—but to match the finish to the environment.
Final Thoughts
E-coating isn’t always necessary—but in the right conditions, it can make a meaningful difference if you are willing to pay extra.
If your project involves:
• High moisture exposure
• Coastal or salt-heavy environments
• Long-term durability requirements
…it’s worth considering as part of your finish system.
Otherwise, a high-quality powder coat finish like Keyshield® will handle the majority of applications with no issue.
